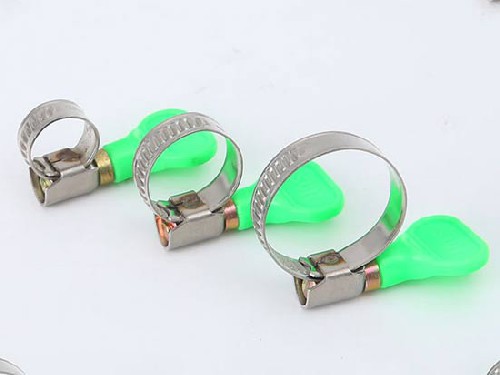

| 品名： | 德式手柄不锈钢喉箍 | |
| 编号： | DS12 | |
| 材质： | 碳钢，不锈钢 | |
| 表面处理： | 电镀，抛光 | |
| 品牌： | 金栋 | |
| 使用范围： | 德式喉箍钢带卷边而且不穿孔的设计有助于在安装过程中防止软管表面划伤，从而起到保护管内气体或液体外泄的作用。 | |
| 德式手柄不锈钢喉箍的带宽为12mm和12mm两种，按照材质分为,W1，W2，W4，W5几种，具体参照如下： | ||
| W1--钢带，箍头，螺丝全部为铁镀锌。 | ||
| W2--钢带，箍头为200或300系列不锈钢，螺丝为铁镀锌 | ||
| W4--钢带，箍头，螺丝全部为200或300不锈钢； | ||
| W5--钢带，箍头，螺丝全部为316不锈钢； | ||
| 德式备注： | 1.常用包装方式为塑料袋加纸箱 | |
| 2.除上述表格中的型号外，其它型号也可以生产定做。 | ||
举个例子：DS12A1627 DS意思是德式拼音第一个字母，12代表德式喉箍的宽度，A代表W1，1627代表规格为：16mm-27mm的德式喉箍 DS12A1627意思是德式喉箍带宽为12mmW1型（钢带，箍头，螺丝全部为铁镀锌）规格为16mm-27mm德式喉箍，
订购前请认真看w1、w2、w4、w5的配置，
| 规格mm | 德式不锈钢喉箍产品货号 | 带宽mm | 每袋装量 | 每箱装量 | |||
| W1 | W2 | W4 | W5 | ||||
| 16-27 | DS12A1627 | DS12B1627 | DS12D1627 | DS12E1627 | 12mm | 100 | 1000 |
| 20-32 | DS12A2032 | DS12B2032 | DS12D2032 | DS12E2032 | 12mm | 100 | 1000 |
| 25-40 | DS12A2540 | DS12B2540 | DS12D2540 | DS12E2540 | 12mm | 50 | 1000 |
| 30-45 | DS12A3045 | DS12B3045 | DS12D3045 | DS12E3045 | 12mm | 50 | 1000 |
| 32-50 | DS12A3250 | DS12B3250 | DS12D3250 | DS12E3250 | 12mm | 50 | 1000 |
| 40-60 | DS12A4060 | DS12B4060 | DS12D4060 | DS12E4060 | 12mm | 20 | 1000 |
| 50-70 | DS12A5070 | DS12B5070 | DS12D5070 | DS12E5070 | 12mm | 20 | 500 |
| 60-80 | DS12A6080 | DS12B6080 | DS12D6080 | DS12E6080 | 12mm | 20 | 500 |
| 70-90 | DS12A7090 | DS12B7090 | DS12D7090 | DS12E7090 | 12mm | 20 | 500 |
| 80-100 | DS12A80100 | DS12B80100 | DS12D80100 | DS12E80100 | 12mm | 20 | 500 |
| 90-110 | DS12A90110 | DS12B90110 | DS12D90110 | DS12E90110 | 12mm | 20 | 500 |
| 100-120 | DS12A100120 | DS12B100120 | DS12D100120 | DS12E100120 | 12mm | 20 | 500 |
| 110-130 | DS12A110130 | DS12B110130 | DS12D110130 | DS12E110130 | 12mm | 20 | 250 |
| 120-140 | DS12A120140 | DS12B120140 | DS12D120140 | DS12E120140 | 12mm | 20 | 250 |
| 130-150 | DS12A130150 | DS12B130150 | DS12D130150 | DS12E130150 | 12mm | 20 | 250 |
| 140-160 | DS12A140160 | DS12B140160 | DS12D140160 | DS12E140160 | 12mm | 20 | 250 |
